High final fineness for large quantities

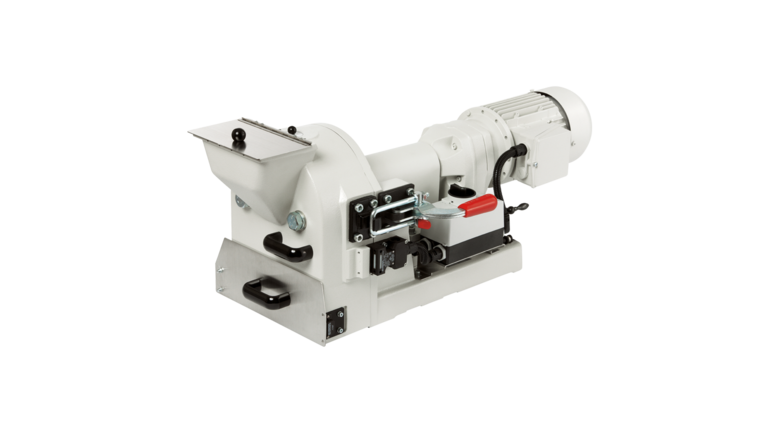

The especially heavy and solid FRITSCH Disk Mill PULVERISETTE 13 classic line is the ideal instrument for fine grinding of up to 150 kg per hour of hard-brittle and medium-hard solids – even in continuous operation. The maximum feed size per piece is approximately 20 mm edge length, the final fineness is freely adjustable between 12 mm and 0.1 mm.
Pressure and shearing action

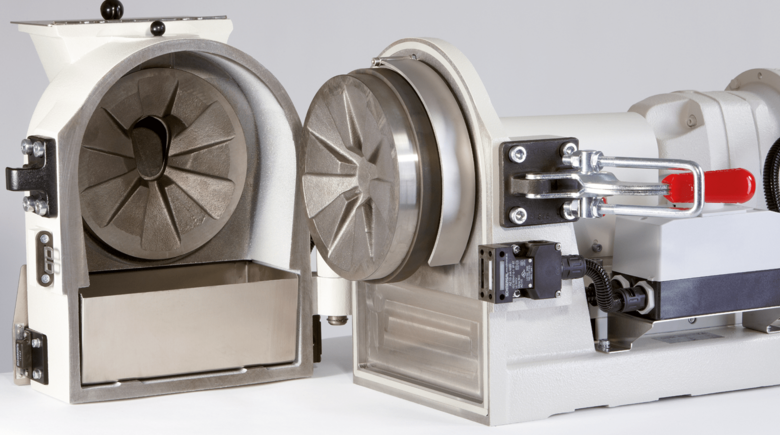

The material to be ground is comminuted by pressure and shearing action between two counteracting grinding disks with coarse interlocking teeth. The ground material automatically falls down through a pre-set grinding gap into the collection drawer. The desired final fineness can be defined from the outside by changing the gap width.
Configure your Disk Mill PULVERISETTE 13 classic line exactly to your specific application
For every FRITSCH Disk Mill PULVERISETTE 13 classic line, you need at least one fixed and one movable grinding disk, which are available in various materials. Normally, two grinding disks of the same material are selected, which must always be harder than the sample to be ground. Grinding disks of zirconium oxide are only suitable for grinding ceramic materials, minerals, etc. and never for hard-tough samples, such as metals.
For completely metal-free grinding of hard-brittle and medium-hard solid samples, for example for dental ceramics, we can equip your FRITSCH Disk Mill PULVERISETTE 13 classic line with a thorough polymer interior coating – together with grinding disks made of zirconium oxide – an absolutely reliable protection against iron contamination.
View extensive accessories
The powerful combination for pre- and fine-crushing in a single step
For fast, continuous pre- and fine-grinding particularly of large quantities of coarse material, the combination of the FRITSCH Disk Mill PULVERISETTE 13 classic line and the FRITSCH Jaw crusher PULVERISETTE 1 classic line is the ideal solution. Mounted together onto a rack and connected to each other by a chute, they automatically grind the material from a particle size of up to 95 mm to a final fineness of down to 100 μm – fast, easy and effective in a single step!
Read details about the combination of the Disk Mill PULVERISETTE 13 classic line and Jaw Crusher PULVERISETTE 1 classic line
