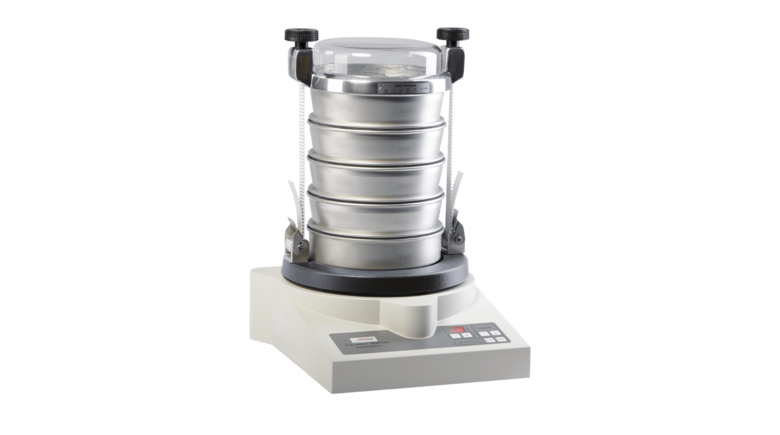

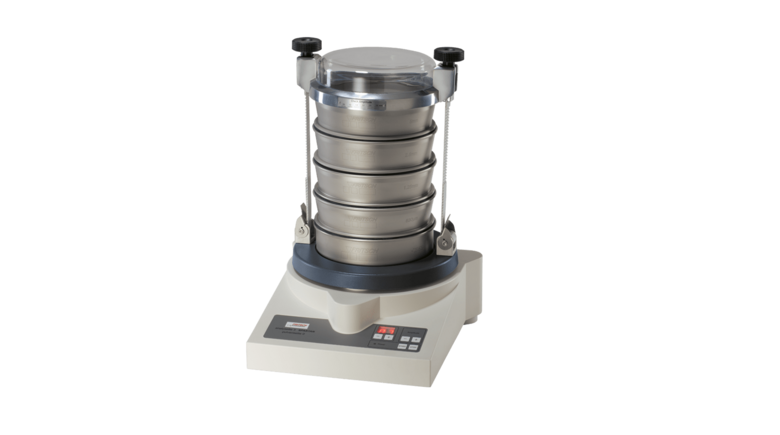

Vibratory Sieve Shaker

ANALYSETTE 3 SPARTAN

Nº de pedido
03.8020.00



AT A GLANCE

  • Dry and wet sieving
  • Automatic sieve evaluation with software AUTOSIEVE
  • Fast, reproducible results
  • Simple ergonomic operation

Ideal for

  • SIEVING
  • MEASURING THE QUANTITATIVE
  • PARTICLE SIZE DISTRIBUTION OF
  • SOLIDS AND SUSPENSIONS
  • SEPARATING
  • FRACTIONING
  • OVERVIEW

    Simple Sieving for all tasks

    The little sister of the ANALYSETTE 3 PRO for all typical sieving tasks in the laboratory with optical adjustment of the amplitude on the running instrument. Complete with the practical FRITSCH sieve stack tensioning system EASYTWIST and the possibility of automatic evaluation of the sieve analysis using the extensive FRITSCH evaluation software AUTOSIEVE.
    The ANALYSETTE 3 SPARTAN is also suitable for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves.
    It is convertible into a micro mill for fine comminution of dry laboratory samples or solids in suspensions and for homogenisation of emulsions or pastes.

  • WORKING PRINCIPLE

    The ANALYSETTE 3 is a “shaking sieve” system in the classic sense in which an electromagnetic drive causes the sieves to oscillate in a vertical direction. The material to be sieved is periodically propelled upward off the sieve fabric and forced through the mesh of the attached test sieve as it falls back down.

  • FEATURES
    • Automatic sieve analysis with sieve evaluation software AUTOSIEVE
    • Quick conversion to Vibratory Micro Mill PULVERISETTE 0
    • Exact entry of the sieving time via a precise digital timer
    • Manual adjustment of the amplitude during sieving
    • Display of the amplitude during sieving
    • Ergonomically installed robust soft touchpad

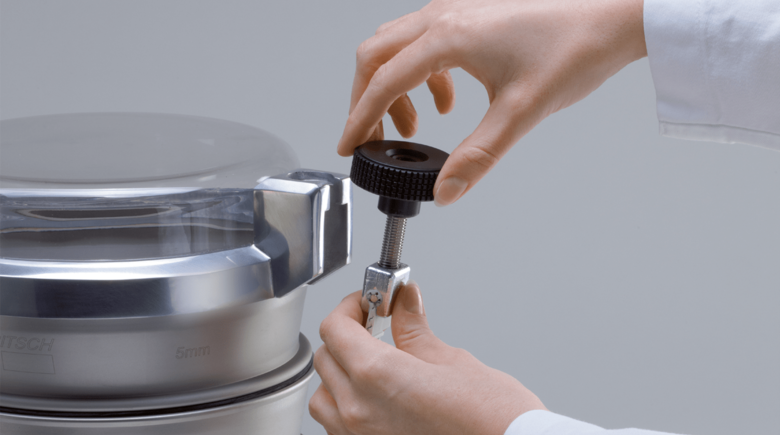

    • EASYTWIST sieve stack tensioner with steel-reinforced plastic bands is included
    • Electric, easy-to-use sieve stack tensioning system TorqueMaster
    • Optimum power consumption prevents warming up of the sieving system
    • Up to 10 test sieves can be used simultaneously per working cycle – allowing up to 5 sieving operations to be performed at the same time

    View extensive accessories

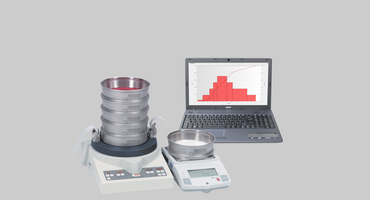

  • Software AUTOSIEVE

    For automatic evaluation of your sieving results

    The multilingual software AUTOSIEVE for automatic evaluation, simple monitoring and documentation of your sieving results can be downloaded here and tested non-binding and free of charge for 90 days. All you have to do is to connect a laboratory analysis balance (like for example the laboratory analysis balance up to 4.1 kg, order no. 03.2600.00) and then weigh the sieves before and after sieving using differential weighing. AUTOSIEVE will do the rest. The software enables the simple saving and retrieving of empty sieve weights, both of single sieves and complete sieve sets.

    Details AUTOSIEVE

  • YOUR SIEVE SHAKER BECOMES A MILL

    Sieving and comminution in one unit

    With just a few motions, your Sieve Shaker can be transformed into the Vibratory Micro Mill PULVERISETTE 0 for grinding and homogenising small sample quantities (filling volume 1 to 10 ml, feed particle size < 5 mm). And with the special FRITSCH cryo-box, grinding is even possible at low temperatures with liquid nitrogen.

    Details about the PULVERISETTE 0

  • EQUIPMENT / ACCESSORIES

    Everything you need for sieving

    By default the Vibratory Sieve Shaker ANALYSETTE 3 SPARTAN is delivered incl. tensioning and the software AUTOSIEVE (90 day test version free of charge), but it does not include clamping lid, test sieves or sieve pan, which are offered in various designs and must be ordered as accessories.
    Also available as an accessory is the universal sieve tensioning system TorqueMaster for automatic and reproducible tensioning of the sieve stack on the Sieve Shaker.

    View extensive accessories
