Planetary Mill

PULVERISETTE 5

premium line

Nº de pedido
05.7020.00
Accesorios

Please note: For the Planetary Mill PULVERISETTE 5 premium line, you require at least 2 grinding bowls of your choice and the corresponding number of grinding balls. The grinding bowl material must also be harder than the material to be ground. In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used. Please take note of the useful capacity, this is not identical with the bowl volume!

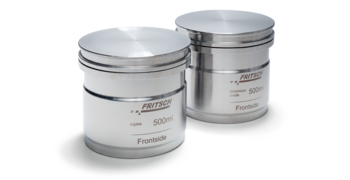

GRINDING BOWLS

Ayuda de selección

  • Material data for grinding bowls / balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Agate SiO2 2.65 good soft to medium-hard samples
    Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples
    Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples

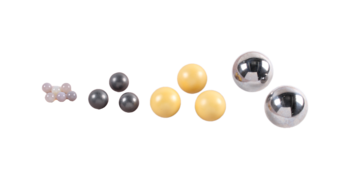

  • Recommended number of balls per grinding bowl

    Grinding balls ≥ 5mm
    Recommended number of balls per bowl
    Grinding bowl/
    Useful capacity (grinding material)
    125 ml
    15 – 50 ml
    150 ml
    20 – 70 ml
    250 ml
    30 – 125 ml
    420 ml
    60 – 200 ml
    500 ml
    80 – 225 ml
    Balls diameter
    20 mm 9 12 15 20 25
    15 mm 25 35 45 60 70
    10 mm 35 40 50 80 100
    5 mm 600 900 1200 1800 2000
    Grinding balls ≤ 3 mm
    Recommended ball mass per grinding bowl in grams
    Grinding bowl/
    Useful capacity (grinding material )
    150 ml
    20 – 70 ml
    250 ml
    30 – 125 ml
    500 ml
    80 – 225 ml
    Material
    Zirconium oxide 170 g 400 g 800 g
    Hardened, stainless steel 350 g 500 g 1100 g
    Hardmetal tungsten carbide 800 g 1000 g 2100 g
  • Additional Information

    Grinding balls with diameter 3 mm and less must be weighed out. The above table provides you with the required mass per grinding bowl.

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.

Please select 2 grinding bowls offered in the sizes 500 ml, 420 ml, 250 ml, 150 ml and 125 ml to perfectly match your sample volume. The useful capacity of the grinding bowls can be found in the selection aid. All grinding bowls of the FRITSCH premium line are cased in stainless steel, have a label and the same inner diameter regardless of their volume.
For the best grinding results in each individual case, all grinding bowls are available in 4 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion.

SELECT GRINDING BOWL VOLUME

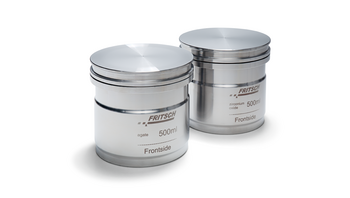

GRINDING BOWL 420-500 ML VOLUME

agate - SiO2 - with steel casing
Nº. 50.6400.00
agate with steel casing, 420 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 420 ml
Useful capacity: 60 … 200 ml
Weight net: 2.700 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
Nº. 50.6490.00
zirconium oxide with steel casing, 500 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 3.700 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 50.6550.00
hardened, stainless steel, 500 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 4.800 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
Nº. 50.6580.00
hardmetal tungsten carbide with steel casing, 500 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 6.500 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BOWL 250 ML VOLUME

agate - SiO2 - with steel casing
Nº. 50.6610.00
agate with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 3.400 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
Nº. 50.6700.00
zirconium oxide with steel casing, 250 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.200 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
Nº. 50.6760.00
hardened, stainless steel with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.600 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
Nº. 50.6790.00
hardmetal tungsten carbide with steel casing, 250 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 6.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BOWL 125-150 ML VOLUME

agate - SiO2 - with steel casing
Nº. 50.6840.00
agate with steel casing, 125 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 125 ml
Useful capacity: 15 … 50 ml
Weight net: 1.970 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
Nº. 50.6900.00
zirconium oxide with steel casing, 150 ml volume  for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.500 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 50.6920.00
hardened, stainless steel, 150 ml volume for PULVERISETTE 5<i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.850 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
Nº. 50.6940.00
hardmetal tungsten carbide with steel casing, 150 ml volume for PULVERISETTE 5 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 4.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

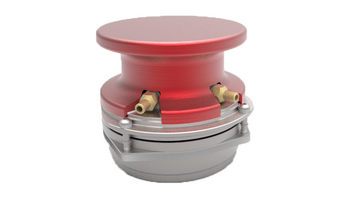

Adapter for all Grinding Bowls PULVERISETTE 5 premium line 125-150 ml volume
Nº. 50.6837.00
for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Adapter for all grinding bowls PULVERISETTE 5 premium line 125-150 ml volume, essential for weight compensation, if only one grinding bowl is inserted in the grinding bowl holder.


Stacking ring for all grinding bowls PULVERISETTE 5 premium line 125-150 ml volume
Nº. 50.6830.00
for grinding bowls PULVERISETTE 5 <i>premium line</i>

Essential, if 2 grinding bowls 125-150 ml volume per grinding bowl holder are used.


If you would like to grind four samples simultaneously, simply order four grinding bowls, each with 125-150 volume and 2 stacking rings.


Accessories for all grinding bowls PULVERISETTE 5 premium line

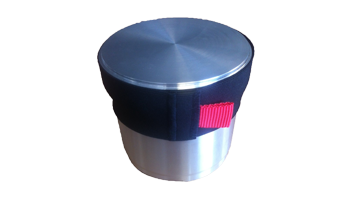

replacement grinding bowl seal tape
Nº. 50.6980.24
replacement grinding bowl seal tape

Replacement grinding bowl seal tape for all grinding bowls premium line 125-500 ml volume.


Replacement seal ring Viton 88.49 x 3.53 for premium line grinding bowls 125-150 ml volume
Nº. 84.0163.15

Replacement seal ring Viton 88.49 x 3.53 mm for  premium line grinding bowls  125-150 ml volume.


Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.


ANÁLISIS ELEMENTAL
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data
replacement seal ring Viton 88 x 4 mm for premium line grinding bowls 250-500 ml volume
Nº. 84.0164.15

Replacement seal ring Viton 88 x 4 mm for  premium line grinding bowls 250-500 volume, all gassing lids for premium line grinding bowls 125-500 ml volume and all EASY GTM grinding bowls 250 ml volume.


Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.


ANÁLISIS ELEMENTAL
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data

GRINDING BALLS

Ayuda de selección

  • Material data for grinding bowls / balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Agate SiO2 2.65 good soft to medium-hard samples
    Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples
    Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples
  • Size of the grinding balls

    Type of sample material Suitable ball diameter
    Hard samples with a maximum feed size of 10 mm 20 mm
    Average feed size of ≤ 5 mm 20 mm, 15 mm, or 10 mm
    Fine material 0.1 - 0.5 mm 10 mm or smaller
    Very fine material 0.1 mm 3 mm or smaller
    Homogenisation of dry or liquid samples 20 mm or smaller
    Homogenisation of viscous samples 20 mm
  • Recommended number of balls per grinding bowl

    Grinding balls ≥ 5mm
    Recommended number of balls per bowl
    Grinding bowl/
    Useful capacity (grinding material)
    125 ml
    15 – 50 ml
    150 ml
    20 – 70 ml
    250 ml
    30 – 125 ml
    420 ml
    60 – 200 ml
    500 ml
    80 – 225 ml
    Balls diameter
    20 mm 9 12 15 20 25
    15 mm 25 35 45 60 70
    10 mm 35 40 50 80 100
    5 mm 600 900 1200 1800 2000
    Grinding balls ≤ 3 mm
    Recommended ball mass per grinding bowl in grams
    Grinding bowl/
    Useful capacity (grinding material )
    150 ml
    20 – 70 ml
    250 ml
    30 – 125 ml
    500 ml
    80 – 225 ml
    Material
    Zirconium oxide 170 g 400 g 800 g
    Hardened, stainless steel 350 g 500 g 1100 g
    Hardmetal tungsten carbide 800 g 1000 g 2100 g
  • Additional Information

    Grinding balls with diameter 3 mm and less must be weighed out. The above table provides you with the required mass per grinding bowl.

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.

For achieving best grinding results grinding balls are available in 0.1 - 20 mm diameters and in different materials, thus directly preventing contamination of the samples as a result of undesired abrasion. The recommended number of balls per grinding bowl can be found in the selection aid.

SELECT THE GRINDING BALL DIAMETER

GRINDING BALLS 20 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ML, 125 ML

agate - SiO2 - polished
Nº. 55.0200.05
Grinding ball agate 20 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
Nº. 55.0200.27
Grinding ball zirconium oxide, 20 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 55.0200.09
Grinding ball hardened, stainless steel, 20 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
Nº. 55.0200.08
Grinding ball hardmetal tungsten carbide, 20 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 15 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ML, 125 ML

agate - SiO2 - polished
Nº. 55.0150.05
Grinding ball agate 15 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
Nº. 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
Nº. 55.0150.08
Grinding ball hardmetal tungsten carbide, 15 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 10 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ml, 125 ML

agate - SiO2 - polished
Nº. 55.0100.05
Grinding ball agate 10 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
Nº. 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
Nº. 55.0100.08
Grinding ball hardmetal tungsten carbide, 10 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 5 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ml, 125 ML

agate - SiO2 - polished
Nº. 55.0050.05
Grinding ball agate, 5 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
Nº. 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
Nº. 55.0050.08
Grinding ball hardmetal tungsten carbide, 5 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS ≤ 3 MM DIAMETER FOR GRINDING BOWL 500 ML, 250 ML, 150 ml

3 mm dia. zirconium oxide ZrO2
Nº. 55.0030.27
Grinding balls zirconium oxide 3 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
2 mm dia. zirconium oxide ZrO2
Nº. 55.0020.27
Grinding balls zirconium oxide 2 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1.5 mm dia. zirconium oxide ZrO2
Nº. 55.0015.27
Grinding balls zirconium oxide 1.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1 mm dia. zirconium oxide ZrO2
Nº. 55.0010.27
Grinding balls zirconium oxide 1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.5 mm dia. zirconium oxide ZrO2
Nº. 55.0005.27
Grinding balls zirconium oxide 0.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.1 mm dia. zirconium oxide ZrO2
Nº. 55.0001.27
Grinding balls zirconium oxide 0.1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
3 mm dia. hardened, stainless steel - Fe - Cr
Nº. 55.0030.09
Grinding balls hardened, stainless steel 3 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
1 mm dia. hardened, stainless steel - Fe - Cr
Nº. 55.0010.09
Grinding balls hardened, stainless steel 1 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
3 mm dia. hardmetal tungsten carbide - WC
Nº. 55.0030.08
Grinding balls hardmetal tungsten carbide 3 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
1.6 mm dia. hardmetal tungsten carbide - WC
Nº. 55.0016.08
Grinding balls hardmetal tungsten carbide 1.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
0.6 mm dia. hardmetal tungsten carbide - WC
Nº. 55.0006.08
Grinding balls hardmetal tungsten carbide 0.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

SPECIAL ACCESSORIES

The software MillControl enables the automatic control of the Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. With the utilization of 2 EASY GTM grinding bowls with special lid and transmitter you turn your PULVERISETTE 5 premium line into an analytical measuring system for visualizing pressure and temperature during the grinding process.
For quickly and safely grinding in inert gas and for mechanical alloying premium line gassing lids are recommended.

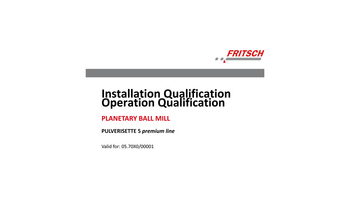

A certificate for IQ/OQ documentation is also available.

SELECT SPECIAL ACCESSORIES

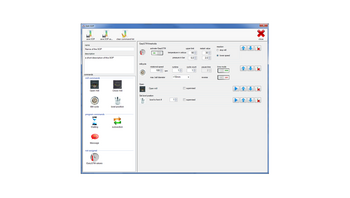

SOFTWARE MILLCONTROL

Software MillControl for Windows
Nº. 83.5605.00
for Windows for automatic control of the mill and validation of the grinding process

The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 and Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. The software is a distinct safety feature, since overpressure and a rise in temperature are avoided and defects on the mill and a sticking of the sample material prevented.

Detailed information on MillControl is available here


EASY GTM - GAS PRESSURE AND TEMPERATURE MEASURING SYSTEM FOR CONTROLLING THE MILLING PROCESS

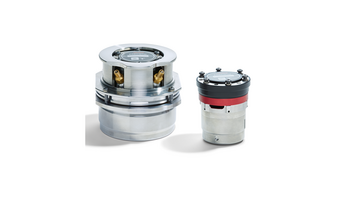

Receiver unit - board and software MillControl
Nº. 81.0013.00
receiver unit – board and software MillControl

Turn your Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software.
Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
Especially practical: The receiver unit needs only to be inserted and adjusted just once – the software MillControl via USB only installed once - regardless of the number of EASY GTM-bowls used.
Only one receiver unit with software MillControl has to be ordered. EASY GTM is also available for further grinding bowl volumes on request.

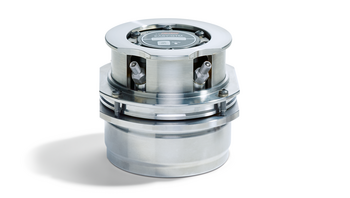

250 ml grinding bowl made of zirconium oxide - ZrO2 with special lid with gassing valves and transmitter
Nº. 50.9250.00
grinding bowl zirconium oxide with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line and into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in hardened, stainless steel and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data

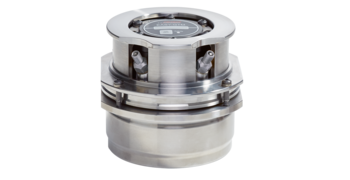

250 ml grinding bowl made of hardened, stainless steel - Fe-Cr with special lid with gassing valves and transmitter
Nº. 50.9280.00
grinding bowl hardened, stainless steel with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line  into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
250 ml grinding bowl made of hardmetal tungsten carbide - WC with special lid with gassing valves and transmitter
Nº. 50.9310.00
grinding bowl hardmetal tungsten carbide with special lid with gassing valves and transmitter, 250 ml

For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line  into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and stainless steel.
Only one receiver unit has to be ordered, regardless of the number of EASY GTM-bowls used.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Accessories for single-use technology

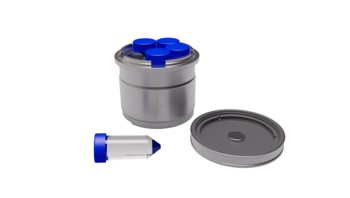

grinding bowl made of aluminium
Nº. 50.6436.00
grinding bowl made of aluminium with 5 tubes 25 ml volume

The grinding bowl made of aluminium with 5 tubes of 25 ml volume is utilized for the single-use technology for our Planetary Mill P5 premium line.


set of tubes 25 ml volume with lids
Nº. 50.6437.00
set of tubes 25 ml volume with lids (set = 10 pieces)

The set of set of tubes 25 ml volume with lids (set = 10 pieces) for inserting into our grinding bowl made of aluminium order no. 50.6436.00.


ACCESSORIES FOR GRINDING IN INERT GAS AND FOR MECHANICAL ALLOYING

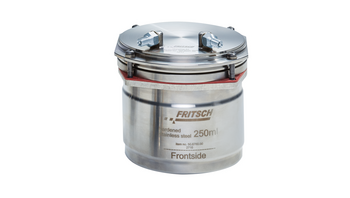

GASSING LID WITH VALVES AND SEAL RING

agate - SiO2 - with steel casing
Nº. 50.6407.00
agate with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Agate gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml,  150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
Nº. 50.6497.00
zirconium oxide with steel casing for all grinding bowls PULVERISETTE 5  <i>premium line</i>

Zirconium oxide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml,  150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened stainless steel - Fe - Cr - with steel casing
Nº. 50.6557.00
hardened stainless steel with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

hardened stainless steel gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
Nº. 50.6587.00
hardmetal tungsten carbide with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Hardmetal tungsten carbide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

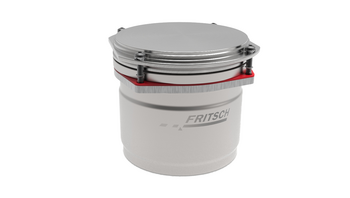

Screw-on grinding bowl lids with seal ring

agate - SiO2 - with steel casing
Nº. 50.6405.00
agate with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid agate with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANÁLISIS ELEMENTAL
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
Nº. 50.6495.00
zirconium oxide with with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid zirconium oxide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened stainless steel - Fe - Cr - with steel casing
Nº. 50.6555.00
hardened stainless steel with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid hardened stainless steel with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
Nº. 50.6585.00
hardmetal tungsten carbide with steel casing for all grinding bowls PULVERISETTE 5 <i>premium line</i>

Screw-on grinding bowl lid hardmetal tungsten carbide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.


ANÁLISIS ELEMENTAL
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

CERTIFICATION

IQ/OQ documentation (questionnaire format - implementation by customer)
Nº. 96.0310.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Mill PULVERISETTE 5 premium line.


Nº de pedido
05.7020.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Teléfono +49 67 84 70 0

Base de datos de protocolos de molienda

PROBAR AHORA

MOLIENDA DE PRUEBA INDIVIDUALMENTE

Envíenos su muestra. Realizamos una muestra de molienda y recomendamos el dispositivo adecuado para su aplicación.
