Universal Cutting Mill - variable speed 50-700 rpm

PULVERISETTE 19

Nº de pedido
19.3040.00
Accesorios

Configure your Universal-Cutting Mill PULVERISETTE 19 with variable rotational speed of 50–700 rpm exactly to your specific application.

Please choose from our extensive accessories at least a funnel, cutting tool set, sieve cassette and collection vessel.

Funnel
Funnel for long and bulk solids made of plastic or stainless steel 316L or protected funnel made of stainless steel with plastic sample pusher

Cutting tool sets
Rotor with V-cutting edges and fixed knives made of hardened stainless steel, or hardmetal tungsten carbide or chromium-free tool steel or
rotor with notched edges and fixed knives made of hardened stainless steel and stainless steel 316L or
rotor with straight cutting edges and straight knives made of stainless steel or chromium-free tool steel or disk milling cutting rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide

Sieve cassettes

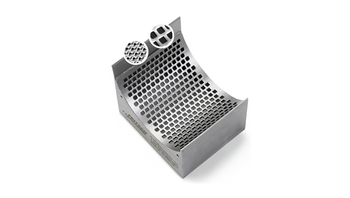

Sieve cassettes with trapezoidal or square perforation made stainless steel 316L or chromium-free steel DC01

Collection vessels
Collection vessel 3 litres or collection vessel for large quantities 10 litres

Optional Accessories

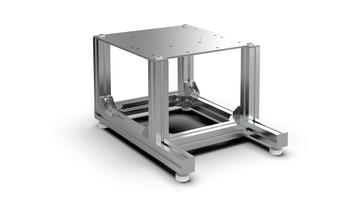

Stand: Universal support stand or stand made of stainless steel 316L and stand available with wheels

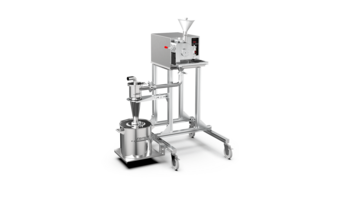

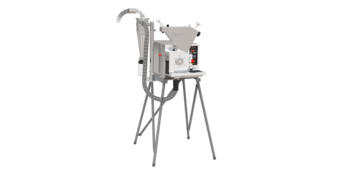

Sample exhaustion with Cyclone separators: High-performance Cyclone separator or small volume Cyclone separator

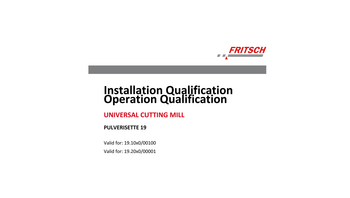

Certification: IQ/OQ-Documentation to support instrument qualification
PLC module: A PLC module for controlling the Cutting Mill via a PLC control system and the physical connection based on a RS485 bus are available on request.

FUNNELS

The PULVERISETTE 19 can either be used with a funnel for long and bulk solids made of plastic or stainless steel 316L for feeding materials at their full length or a protected funnel made of stainless steel with a plastic sample pusher for all other materials.

SELECT FUNNEL

FUNNELS

standard funnel for long- and bulk solids
Nº. 19.1550.00

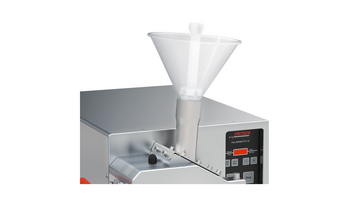

Standard funnel for long- and bulk solids

With the FRITSCH standard funnel free-flowing bulk solids as well as straw, films or similar materials can be inserted at full length. Both ends of the plunger of the funnel for long and bulk solids can be utilised: the small end for adding of long goods and the wide end for bulk solids.


ANÁLISIS ELEMENTAL
1. Stopper-Body
General specifications
MaterialAluminium AlZnMgCu1,5
ISO/EN/DIN Code3.4365
Chemical composition
ElementShare %
Iron – Fe0.50
Silicon – Si0.40
Copper – Cu1.2 - 2.0
Manganese – Mn0.30
Magnesium – Mg2.1 - 2.9
Chromium– Cr0.18 - 0.28
Zinc - Zn5.1 - 6.1
Titan – Ti0.20
Physical and mechanical properties
Density2.7 g/cm³
Hardness2.75 Mohs


2. Fillingtube
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96




Explanations on hardness data
protected funnel with sample pusher
Nº. 19.1850.00

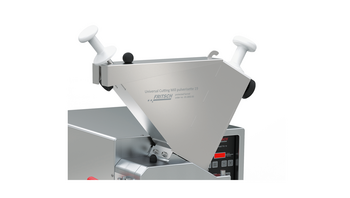

Protected funnel with sample pusher

The protected funnel with sample pusher enables due to the sample pusher a good handling and an outstanding material feeding.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96


Explanations on hardness data
funnel for long- and bulk solids, stainless steel 316L
Nº. 19.1559.00

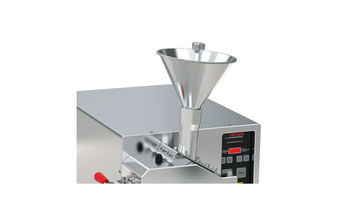

Funnel for long- and bulk solids made of stainless steel 316L

Funnel for long- and bulk solids made in a corrosion-resistant stainless steel version 316L for applications in the food and pharmaceutical industry.
With this FRITSCH funnel free-flowing bulk solids as well as straw, films or similar materials can be inserted at full length. Both ends of the plunger of the funnel for long and bulk solids can be utilised: the small end for adding of long goods and the wide end for bulk solids.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

COLLECTING VESSELS made of stainless steel 316L

A collection vessel with 3 litres volume is available. For the comminution of larger amounts the collection vessel 10 litre volume is recommended.
Collection vessels are also available in further sizes.

SELECT COLLECTING VESSEL

COLLECTING VESSELS

3 litres
Nº. 45.5730.00

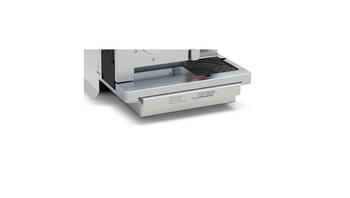

Collecting vessel, 3 litres

This collection vessel has a volume of 3 litres. Collection vessels (stainless steel are available in various sizes).


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
10 litres - for large quantities
Nº. 45.5700.00

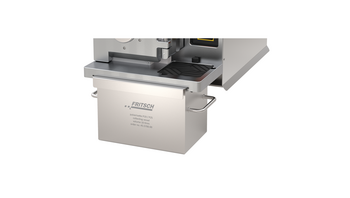

Collecting vessel for large quantities, 10 litres

This collection vessel is recommended for the comminution of larger sample amounts and has a volume of 10 litres.
Collection vessels (stainless steel are available in various sizes).


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

CUTTING TOOL SETS

Ayuda de selección

  • Material data for cutting tool sets and application recommendation

    Material and rotor type Main component of material Abrasion resistance Density g/cm³ Suitable for comminution of
    Hardened, stainless steel Fe - Cr fairly good 7.7
    Standard rotor with V-cutting edges and fixed knives
    order no. 45.5100.00



    Rotor with notched edges and fixed knives
    order no. 45.5192.00











    Rotor with straight cutting edges and fixed knives
    order no. 45.5185.00
    medium-hard, brittle samples and for tough-elastic materials and films

    medium-hard, brittle, fibrous and elastic samples and for samples with residual moisture, such as food, feed or plants, and temperature-sensitive samples, such as plastics

    medium-hard, brittle samples and for easily cut material, such as hay, straw, fibrous or biological materials
    Stainless steel 316L Fe - Cr fairly good 8.0
    Rotor with notched edges and fixed knives
    order no. 45.5198.00
    medium-hard, brittle, fibrous and elastic samples, ideal for comminution of samples with residual moisture, such as food, feed or plants and for temperature-sensitive samples like for example plastics, resistant to alkalis and acids, complies with the guidelines of the food and pharmaceutical industry perfect for the analytical sector, increased resistance to corrosion
    Hardmetal tungsten carbide WC very good 12.4
    Rotor with V-cutting edges and fixed knives

    order no 45.5370.00

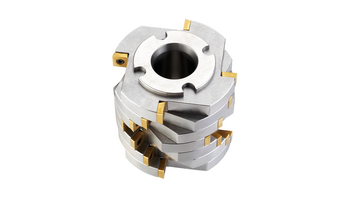

    Disk milling cutter rotor with indexable inserts and fixed knives
    order no. 45.5200.00

    hard, abrasive samples and hard-tough materials

    hard, abrasive samples and scrap circuit board with glass fibre residue and copper cable

The PULVERISETTE 19 can either be equipped with a rotor with V-cutting edges and fixed knives or rotor with straight cutting edges and fixed knives, or rotor with notched edges and fixed knives or disk milling cutter rotor with indexable inserts and fixed knives.
By selecting the material of the cutting tool sets and sieve cassettes, the abrasion properties can also be individually accommodated. Details about cutting rotors and materials are found in the element analysis.
Cutting tool sets are also available in further materials.

SELECT CUTTING TOOL SET

CUTTING TOOL SET MADE OF HARDENED STAINLESS STEEL AND HARDMETAL TUNGSTEN CARBIDE

standard rotor with V-cutting edges and fixed knives made of hardened, stainless steel
Nº. 45.5100.00

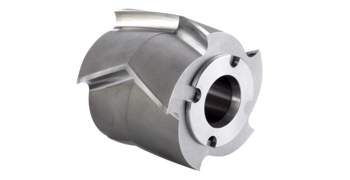

Standard rotor with V-cutting edges and fixed knives made of hardened, stainless steel

The standard rotor made of hardened, stainless steel with V-cutting edges and fixed knives is suited primarily for comminution of tough-elastic materials and films due to its especially acute cutting angle and the high cutting action that results.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANÁLISIS ELEMENTAL
Standard rotor with V-cutting edges and fixed knives
General specifications
MaterialStainless steel – 1.4112
ISO/EN/DIN codeX90CrMoV18 / EN 10088
Chemical composition
ElementShare %
Iron – Fe79 - 77
Chromium – Cr17 - 19
Silicon – Si1.0
Manganese – Mn1.0
Molybdenum – Mo0.9 - 1.3
Carbon – C0.85 - 0.95
Vanadium – V0.07 - 0.012
Phosphorus – P0.04
Sulphur – S0.015
Physical and mechanical properties
Density 7.7 g/cm³ ;
Hardness56 - 58 HRC


Explanations on hardness data

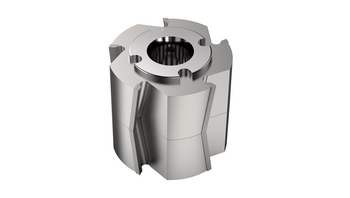

rotor with V-cutting edges and fixed knives made of hardmetal tungsten carbide
Nº. 45.5370.00
Rotor with V-cutting edges and fixed knives made of hardmetal tungsten carbide

This rotor with V-cutting edges and fixed knives made of hardmetal tungsten carbide comminutes the grinding material through impact and cutting forces and is suitable for hard-tough materials.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANÁLISIS ELEMENTAL
1. Rotorknives
General Specification
Material

Hardmetal tungsten carbide – WC
Chemical composition
ElementShare %
Tungsten carbide – WC88
Cobalt – Co 12
Physical and mechanical properties
Density 12.4 g/cm³
Hardness 89.5 HRA


2. Rotorbody
General specifications
MaterialStainless steel– 1.4404
ISO/EN/DIN CodeX2CRNiMO17-12-2 /DIN SEW410
Chemical composition
ElementShare %
Iron – Fe68.3 - 62.8
Chromium – Cr 16.5. - 18.5
Nickel – Ni10.0 - 13.0
Molybdenum – Mo 2.0 - 2.5
Manganese – Mn2.0
Silicon – Si1.0
Phosphorus – P0.045
Carbon – C0.03
Sulphur – S0.015
Other – 0.11
Physical and mechanical properties
Density 8.0 g/cm³
Hardness 45 HB


Explanations on hardness data

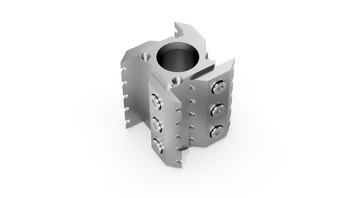

Rotor with notched edges and fixed knives made of hardened stainless steel
Nº. 45.5192.00
Rotor with notched edges and fixed knives made of hardened stainless steel

The rotor with notched edges and fixed knives made of hardened stainless steel is ideal for comminuting samples with residual moisture, such as food, feed or plants, and temperature-sensitive samples, such as plastics.
Due to its notched edges, the grinding chamber never closes completely, thus allowing optimum air flow. This significantly increases the throughput and makes the use of very fine sieves for larger quantities possible in the first place. The rotor knives have two notched cutting edges and can be easily turned after one side is used up.
Your advantage: twice the service life.


ANÁLISIS ELEMENTAL
Standard rotor with V-cutting edges and fixed knives
General specifications
MaterialStainless steel – 1.4112
ISO/EN/DIN codeX90CrMoV18 / EN 10088
Chemical composition
ElementShare %
Iron – Fe79 - 77
Chromium – Cr17 - 19
Silicon – Si1.0
Manganese – Mn1.0
Molybdenum – Mo0.9 - 1.3
Carbon – C0.85 - 0.95
Vanadium – V0.07 - 0.012
Phosphorus – P0.04
Sulphur – S0.015
Physical and mechanical properties
Density 7.7 g/cm³ ;
Hardness56 - 58 HRC


Explanations on hardness data
Rotor with notched edges and fixed knives made of stainless steel 316L
Nº. 45.5198.00
Rotor with notched edges and fixed knives made of stainless steel 316L

The rotor with notched edges and fixed knives made of stainless steel 316L is ideal for comminuting samples with residual moisture, such as food, feed or plants, and temperature-sensitive samples, such as plastics.
Due to the material used, the rotor is resistant to alkalis and acids and complies with the guidelines of the food and pharmaceutical industry – thus it’s perfect for the analytical sector and for sample preparation with special focus on increased resistance to corrosion.
Due to its notched edges, the grinding chamber never closes completely, thus allowing optimum air flow. This significantly increases the throughput and makes the use of very fine sieves for larger quantities possible in the first place. The rotor knives have two notched cutting edges and can be easily turned after one side is used up.
Your advantage: twice the service life.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
rotor with straight cutting edges and fixed knives made of hardened, stainless steel
Nº. 45.5185.00
Rotor with straight cutting edges and fixed knives made of hardened, stainless steel

The rotor made of tool steel with straight cutting edges which run parallel to the fixed knives is suitable for easily cut material, such as hay, straw, fibrous or biological materials. The rotor knives may be turned, since they have 2 cutting edges. Your advantage: doubling the life span of your rotor knives.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANÁLISIS ELEMENTAL
1. Rotorknives
General specifications
MaterialTool steel – 1.2379
ISO/EN/DIN codeX155CrVMo12/1 / 59350
Chemical composition
ElementShare %
Iron – Fe85.79 – 82.14
Carbon – C1.45 – 1.6
Silicon – Si0.1 - 0.6
Manganese – Mn0.2 – 0.6
Phosphorus – P0.03
Sulphur – S0.03
Chromium – Cr11 – 13
Molybdenum – Mo0.7 - 1
Tungsten – W0.7 - 1
Physical and mechanical properties
Density 7.85 g/cm³ ;
Hardness58-60 HV


2. Rotor body
General specifications
MaterialConstruction steel – 1.0037 – FeP03
ISO/EN/DIN codeS235 JR
Chemical composition
ElementShare %
Iron – Fe98.34
Carbon – C0.17
Manganese – Mn1.4
Phosphorus – P0.045
Sulphur – S0.045
Chromium – Cr1.660
Physical and mechanical properties
Density7.85 g/cm³
Hardness20-95 HV


Explanations on hardness data
disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide
Nº. 45.5200.00
Disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide

Disk milling cutter rotor: The especially robust disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide can even comminute circuit board scrap with glass fibre residue and copper cable.
Quadruple service life: With the disk milling cutter rotor, the cutting plates can be turned four times and replaced individually. Damage or wear are no longer a reason to buy a completely new rotor.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANÁLISIS ELEMENTAL
1. Rotorknives
General Specification
Material

Hardmetal tungsten carbide – WC
Chemical composition
ElementShare %
Tungsten carbide – WC88
Cobalt – Co 12
Physical and mechanical properties
Density 12.4 g/cm³
Hardness 89.5 HRA


2. Rotorbody
General specifications
MaterialStainless steel– 1.4404
ISO/EN/DIN CodeX2CRNiMO17-12-2 /DIN SEW410
Chemical composition
ElementShare %
Iron – Fe68.3 - 62.8
Chromium – Cr 16.5. - 18.5
Nickel – Ni10.0 - 13.0
Molybdenum – Mo 2.0 - 2.5
Manganese – Mn2.0
Silicon – Si1.0
Phosphorus – P0.045
Carbon – C0.03
Sulphur – S0.015
Other – 0.11
Physical and mechanical properties
Density 8.0 g/cm³
Hardness 45 HB


Explanations on hardness data
Disk milling cutter rotor with large chip chambers, indexable inserts and fixed knives made of hardmetal tungsten carbide
Nº. 45.5201.00
Disk milling cutter rotor with large chip chambers, indexable inserts and fixed knives made of hardmetal tungsten carbide

The disk milling cutter rotor with large chip chambers, indexable inserts and fixed knives made
of hardmetal tungsten carbide is suited for grinding large sample amounts.


The especially robust disk milling cutter rotor with large chip chambers, indexable inserts and fixed knives  can even comminute circuit board scrap with glass fibre residue and copper cable.
Quadruple service life: With the disk milling cutter rotor, the cutting plates can be turned four times and replaced individually. Damage or wear are no longer a reason to buy a completely new rotor.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.


ANÁLISIS ELEMENTAL
1. Rotorknives
General Specification
Material

Hardmetal tungsten carbide – WC
Chemical composition
ElementShare %
Tungsten carbide – WC88
Cobalt – Co 12
Physical and mechanical properties
Density 12.4 g/cm³
Hardness 89.5 HRA


2. Rotorbody
General specifications
MaterialStainless steel– 1.4404
ISO/EN/DIN CodeX2CRNiMO17-12-2 /DIN SEW410
Chemical composition
ElementShare %
Iron – Fe68.3 - 62.8
Chromium – Cr 16.5. - 18.5
Nickel – Ni10.0 - 13.0
Molybdenum – Mo 2.0 - 2.5
Manganese – Mn2.0
Silicon – Si1.0
Phosphorus – P0.045
Carbon – C0.03
Sulphur – S0.015
Other – 0.11
Physical and mechanical properties
Density 8.0 g/cm³
Hardness 45 HB


Explanations on hardness data

Sieve cassettes made of stainless steel 316L

Sieve cassettes determine the fineness of a sample. Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.
Sieve cassettes are also available in further perforations.

SELECT AT LEAST ONE SIEVE CASSETTE

SIEVE CASSETTE MADE OF STAINLESS STEEL 316L

0.2 mm trapezoidal perforation
Nº. 45.5405.10
0.2 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes  with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.25 mm trapezoidal perforation
Nº. 45.5410.10
0.25 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.5 mm trapezoidal perforation
Nº. 45.5420.10
0.5 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.75 mm trapezoidal perforation
Nº. 45.5430.10
0.75 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm trapezoidal perforation
Nº. 45.5440.10
1 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1.5 mm trapezoidal perforation
Nº. 45.5450.10
1.5 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm trapezoidal perforation
Nº. 45.5460.10
2 mm trapezoidal perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm square perforation
Nº. 45.5495.10
2 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band. They are laser-welded and offer significantly easier cleaning due to less dead spaces. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
4 mm square perforation
Nº. 45.5501.10
4 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achiving medium fineness with a narrow grain band. They are laser-welded and offer significantly easier cleaning due to less dead spaces. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
6 mm square perforation
Nº. 45.5513.10
6 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band. They are laser-welded and offer significantly easier cleaning due to less dead spaces. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
8 mm square perforation
Nº. 45.5514.10
8 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band. They are laser-welded and offer significantly easier cleaning due to less dead spaces. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
10 mm square perforation
Nº. 45.5515.10
10 mm square perforation

Sieve cassettes determine the fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band. They are laser-welded and offer significantly easier cleaning due to less dead spaces. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action.


For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our sieve cassettes made of chromium-free tool steel.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

ACCESSORIES FOR CHROMIUM-FREE COMMINUTION

Ayuda de selección

  • Material data for chromium-free cutting tool sets and application recommendation

    Material and rotor type Main component of material Abrasion resistance Density g/cm³ Suitable for comminution of
    Chromium-free tool steel Fe fairly good 7.8

    Rotor with V-cutting edges and fixed knives
    order no. 45.5112.00



    Rotor with straight cutting edges and fixed knives
    order no. 45.5012.00


    Both rotors are recommended for sample preparation according to RoHS for example for verification of hexavalent chromium or XRF analysis.

    brittle, hard samples, tough-elastic materials and films

    brittle, hard samples, easily cut material, such as hay, straw, fibrous or biological materials

When chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis. FRITSCH cutting tool sets of chromium-free tool steel and sieve cassettes made of chromium-free steel DC01 offer absolute assurance.

SELECT Chromium-free cutting tool sets and sieve cassettes

CUTTING TOOL SET MADE OF CHROMIUM-FREE TOOL STEEL

rotor with V-cutting edges and fixed knives
Nº. 45.5112.00
Rotor with V-cutting edges and fixed knives made of chromium-free tool steel

The rotors made of chromium-free tool steel are especially recommended for the sample preparation according to RoHS and for the XRF-analysis. If a chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis, FRITSCH cutting tool sets of chromium-free tool steel offer this absolute assurance. Because for FRITSCH Cutting Mills, the fixed knives are always of the same material as the cutting edges of the rotor.


This rotor with V-cutting edges and fixed knives made of chromium-free tool steel is suited primarily for comminution of tough-elastic materials and films due to its especially acute cutting angle and the high cutting action that results.


For all other applications we recommend our cutting tool set made of tool steel and hardmetal tungsten carbide, since these are harder and therefore more resilient against abrasion.


ANÁLISIS ELEMENTAL
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
rotor with straight cutting edges and fixed knives
Nº. 45.5012.00
Rotor with straight cutting edges and fixed knives made of  chromium-free tool steel

The rotors made of chromium-free tool steel are especially recommended for the sample preparation according to RoHS and for the XRF-analysis. If a chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis, FRITSCH cutting tool sets of chromium-free tool steel offer this absolute assurance. Because for FRITSCH Cutting Mills, the fixed knives are always of the same material as the cutting edges of the rotor.


The rotor made of chromium-free tool steel with straight cutting edges which run parallel to the fixed knives is suitable for easily cut material, such as hay, straw, fibrous or biological materials. The rotor knives may be turned, since they have 2 cutting edges. Your advantage: doubling the life span of your rotor knives.


For all other applications, we recommend our cutting tool set made of tool steel and hardmetal tungsten carbide, since these are harder and therefore more resilient against abrasion.


ANÁLISIS ELEMENTAL
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data

SIEVE CASSETTES MADE OF CHROMIUM-FREE STEEL DC 01

0.5 mm trapezoidal perforation
Nº. 45.5420.09
0.5 mm trapezoidal perforation

Sieve cassettes determine the final fineness of a sample. Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


ANÁLISIS ELEMENTAL
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
1 mm trapezoidal perforation
Nº. 45.5440.09
1 mm trapezoidal perforation

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANÁLISIS ELEMENTAL
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
2 mm trapezoidal perforation
Nº. 45.5460.09
Sieve cassette 2 mm trapezoidal perforation made of chromium-free steel DC01

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANÁLISIS ELEMENTAL
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
4 mm square perforation
Nº. 45.5500.09
4 mm trapezoidal perforation

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANÁLISIS ELEMENTAL
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
6 mm square perforation
Nº. 45.5510.09
6 mm square perforation

Sieve cassettes made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF analysis. For all other applications sieve cassettes made stainless steel can be used since these are harder and therefore more resilient against abrasion.


Sieve cassettes determine the final fineness of a sample.
Sieve cassettes with trapezoidal and square perforations are offered. Sieve cassettes with trapezoidal perforations improve size reduction through extra shearing action. Sieve cassettes with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


ANÁLISIS ELEMENTAL
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data

Sample exhaustion with Cyclone separators

The patented combination of the Universal-Cutting Mill with the high-performance Cyclone separator and the small volume Cyclone separator  separator enables a simple cleaning and feeding, the use of finer sieve cassettes for achieving a higher final fineness, increases the throughput and reduces the thermal load of the samples – even for materials, which are otherwise difficult to grind.
Select Cyclone separator, exhaust system and accessories.

Select Cyclones and accessories

High-Performance Cyclone separator

Made of stainless steel 304 with flexible tube connection, foodGrade, incl. sample glass 1 litre
Nº. 19.1907.00
Made of stainless steel 304 with flexible tube connection, foodGrade, incl. sample glass 1 litre

The FRITSCH high-performance Cyclone separator completely made of stainless steel 304 is particularly indispensable in the analytical sector and in the food and pharmaceutical industries, and for the processing of heterogeneous mixtures of material, e.g. in the cement industry.
Due to its high surface quality, it offers enhanced resistance to corrosive media such as alkalis and acids and is especially easy to clean with a wide range of possible cleaning agents, without leaving any residues. The comminuted sample is drawn into a screwed-on collecting vessel or in a smaller sample glass, in which it can also be transported and stored. In addition, it can be completely dismantled, fully emptied, flooded and sterilised, and thus offers reliable protection against cross-contamination.


The advantages of the high-performance Cyclone separator at a glance
- Faster throughput
- Improved discharge of material from the grinding chamber
- Additional strong cooling of the grinding material and grinding parts
- Efficient size reduction of temperature-sensitive samples, electrostatically-charged plastics or powder coatings
- Ideal for light materials, small sample quantities and finer sieve sizes
- Highly efficient continuous comminution of large quantities


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96


Explanations on hardness data
With solid piping made of stainless steel 304, incl. sample glass 1 litre
Nº. 19.1940.00
With solid piping made of stainless steel 304, incl. sample glass 1 litre

The FRITSCH high-performance Cyclone separator completely made of stainless steel 304 is particularly indispensable in the analytical sector and in the food and pharmaceutical industries, and for the processing of hetero geneous mixtures of material, e.g. in the cement industry. Due to its high surface quality, it offers enhanced resistance to corrosive media such as alkalis and acids and is especially easy to clean with a wide range of possible cleaning agents, without leaving any residues.  In addition, it can be completely dismantled, fully emptied, flooded and sterilised, and thus offers reliable protection against cross-contamination. The comminuted sample is drawn into a screwed-on collecting vessel or in a smaller sample glass, in which it can also be transported and stored.
The high-performance Cyclone separator with solid piping should be used in combination with the stand with wheels (order no. 45.5800.00).


The advantages of the high-performance Cyclone separator at a glance
- Faster throughput
- Improved discharge of material from the grinding chamber
- Additional strong cooling of the grinding material and grinding parts
- Efficient size reduction of temperature-sensitive samples, electrostatically-charged plastics or powder coatings
- Ideal for light materials, small sample quantities and finer sieve sizes
- Highly efficient continuous comminution of large quantities


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4301
ISO/EN/DIN codeX5CrNi1810
Chemical composition
ElementShare %
Iron – Fe66.805
Carbon – C0.070
Silicon – Si1.000
Manganese – Mn2.000
Phosphorus – P0.045
Sulphur – S0.030
Chromium – Cr19.5
Nickel – Ni10.5
Nitrogen – N0.110
Physical and mechanical properties
Density7.8 g/cm³
HardnessHRB 96


Explanations on hardness data

Collecting Vessel for High-performance Cyclone separator

sample glass 1 litre
Nº. 83.3250.00
Sample glass 1 litre

Sample glass 1 litre for sample exhaustion with the high-performance Cyclone separator.


sample glass 2 litres
Nº. 83.3260.00
Sample glass 2 litres

The sample glass with 2 litres volume is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


sample glass 5 litres
Nº. 83.3270.00
Sample glass 5 litres

The sample glass with 5 litres volume is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


Collecting vessel, 20 litres made of stainless steel
Nº. 45.8040.00
Collecting vessel, 20 litres made of stainless steel

The collection vessel 20 litres is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
Collecting vessel, 60 litres made of stainless steel
Nº. 45.8050.00
Collecting vessel, 60 litres made of stainless steel

The collection vessel 60 litres is recommended for sample exhaustion with the high-performance Cyclone separator for sample discharges larger than 1000 ml, since only a 1 litre sample glass is included in the delivery of the high-performance Cyclone separator.


ANÁLISIS ELEMENTAL
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

Small Volume Cyclone Separator

Small volume Cyclone separator
Nº. 19.1937.00
Small volume Cyclone separator made of plastic, foodGrade

Small volume Cyclone separator made of plastic for sample exhaustion of small sample quantities, incl. 500 ml sample glass.
Especially for exhaustion of small sample quantities, we designed the compact FRITSCH small volume Cyclone separator. It is made of plastic, can be dismantled completely and cleaned in a dishwasher for reliably preventing contaminations. The FRITSCH small volume Cyclone separator must be connected to an exhaust system: order no. 43.9070.00.


Especially convenient: The comminuted sample is drawn directly into the screwed-on 500 ml sample glass, in which it can also be transported and stored. Alternatively a sample glass 250 ml can also be screwed-on and ordered: order no. 27.1450.00.


Collecting vessels for small volume Cyclone separator

Sample glass 250 ml
Nº. 27.1450.00
Sample glass 250 ml

Sample bottle with screw lid, thread of sample bottle GL55, sample bottle can be used with dividing heads, division ratio 1:8 and 1:10.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
The sample glass is recommended for sample exhaustion with the small volume Cyclone separator for sample discharges smaller than 500 ml, since only a 500 ml sample glass is included in the delivery of the small volume performance Cyclone separator.


Sample glass 500 ml
Nº. 27.1460.00
Sample glass 500 ml

Sample bottle with screw lid, thread of sample bottle GL55.
Sample bottle can be used with dividing heads, division ratio 1:8.
Furthermore a sample vessel 32 ml with lid, article-number 83.3190.16, is available, which can be inserted in the sample bottles 250 ml and 500 ml for dividing smallest sample quantities.
Sample glass can also be used for sample exhaustion with the small volume Cyclone separator.


Exhaust system and accessories for for High-performance and Small Volume Cyclone Separator

Switch box for controlling the exhaust system
Nº. 19.3073.00

With the switch box, you control the exhaust system directly via the Universal Cutting Mills PULVERISETTE 19. Due to the switch box, applicable for 100-240 V/1~, 50-60 Hz, up to 3600 Watt, the sample exhaustion with Cyclone separators and exhaust system becomes even easier and more comfortable.


dust exhaust system, dust category „M” according to DIN EN 60335-2-69
Nº. 43.9070.00
Exhaust system, dust category "M" according to DIN EN 60335-2-69

The exhaust system, dust category "M" according to DIN EN 60335-2-69 for 230 V/1~, 50/60 Hz, 1600 Watt is versatile:


For combination with the high performance and small volume cyclones.
To operate the FRITSCH Cyclones you need an exhaust system. The strong airflow ensures simple feeding, increases throughput, and reduces the thermal load of the samples. The high performance and small volume Cyclone separator can be combined with Universal Cutting Mills PULVERISETTE 19, the Variable Speed Rotor Mill PULVERISETTE 14 premium line and classic line. The small volume cyclone can also be combined with the Variable Speed Rotor Mill PULVERISETE 14 premium line and classic line even for passive utilisation – without sample exhaust.
The high-performance cyclone is ideal for combination with the Universal Cutting Mills PULVERISETTE 19 large, the Cross Beater Mill PULVERISETTE 16 and the Disk Mill PULVERISETTE 13 premium line for optimal sample extraction and for comminution of larger quantities.


For cooling of the Variable Speed Rotor Mill PULVERISETTE 14 premium line
By connecting the exhaust system with the connecting piece order no. 14.4214.00, the cooling of the mill can easily be enhanced.


For connecting to Disk Mill PULVERISETTE 13 premium line
The exhaust is simply connected to the PULVERISETTE 13 premium line and operated via a start and stop button on the instrument – for dust free comminution.


For connecting to the Jaw Crusher PULVERISETTE 1, Modell I + II classic line
Simply connect the exhaust system to the integrated connection of the PULVERISETTE 1. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For connecting to the Disk Mill PULVERISETTE 13 classic line
The exhaust system can be easily connected to the PULVERISETTE 13 classic line. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For exhaustion of the sample during dry measurement with the Laser Particle Sizers ANALYSETTE 22 NeXT
An exhaust system is necessary to ensure automatic sample exhaustion during dry measurement. When the measurement is completed it can also be easily used to manually clean the feeder.


Please note that the exhaust system article no. 43.9070.00, is not equipped with a fine filter and therefore dust may escape. Please consider the valid occupational health and safety regulations. This exhaust system is mostly recommended for dust-free grinding and the vacuuming of during the process developing fine dust in the upper part of the grinding chamber and for the cleaning of the grinding parts.


For vacuuming of the sample during dry measurement with the Laser Particle Sizers ANALYSETTE 22 NeXT, we recommended we recommend the exhaust system article no. 43.9060.00, which is equipped with a hose and an ultra-fine filter of dust class "H" according to DIN EN 60335-2-69, so that the escape of fine dust is reduced.


fleece filter bag for exhaust system (pack = 5 pieces) for exhaust system 43.9070.00
Nº. 43.9055.00

1 pack = 5 pieces
One pack is included in the scope of delivery of the exhaust system (article No. 43.9070.00).
These fleece filter bags should be used for the vacuuming off of fine, dry materials.
For the vacuuming off of coarse, wet materials are plastic bags available (article no. 43.9052.00).


plastic bag for exhaust system (pack = 5 pieces) for exhaust system 43.9070.00
Nº. 43.9052.00

1 pack = 5 pieces

One pack is included in the order of the exhaust system (article No. 43.9070.00).
These plastic bags should be used for the vacuuming off of coarse, wet materials.
For the vacuuming off of fine, dry materials are paper filter bags available (article no. 43.9055.00).


STANDS

An universal support stand, a support stand made of stainless steel and a support stand with wheels are available. A support stand with wheels is also available. The stands offer a solid, space-saving and spatially variable basis for the mill.

SELECT A STAND

STANDS

Stand cpl. welded, electrochemically polished made of stainless steel 316L
Nº. 45.5829.00

Stand cpl. welded, electrochemically polished made of stainless steel 316L.
This stand is also recommended and used for the free installation the following models of the Universal-Cutting Mills PULVERISETTE 19 300-3000 rpm and 50-700 rpm in the corrosion resistant stainless steel version 316 L, as well as for the PULVERISETTE 19 large 300-3000 rpm and PULVERISETTE 19 large 50-700 rpm.


stand with wheels
Nº. 45.5800.00

The stand with wheels offers the Universal Cutting Mills PULVERISETTE 19 a space-saving and spatially variable basis.


table-top stand 330 mm high
Nº. 45.5805.00
table-top stand 330 mm high

A table-top stand with a height of approx. 330 mm is offered for the Universal Cutting Mills, Both, the PULVERISETTE 19 and PULVERISETTE 19 large can simply be screwed onto the stand.


CERTIFICATION

IQ/OQ documentation (questionnaire format - implementation not included) for the independent utilization for the support of instrument qualification in the quality management system for the Universal Cutting Mill PULVERISETTE 19.

SELECT CERTIFICATION

CERTIFICATION

IQ/OQ documentation (questionnaire format - implementation by customer)
Nº. 96.0250.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Universal Cutting Mills PULVERISETTE 19.


Nº de pedido
19.3040.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Teléfono +49 67 84 70 0

Base de datos de protocolos de molienda

PROBAR AHORA

MOLIENDA DE PRUEBA INDIVIDUALMENTE

Envíenos su muestra. Realizamos una muestra de molienda y recomendamos el dispositivo adecuado para su aplicación.
