Otros Ball Mills




OTROS GRUPOS DE PRODUCTOS

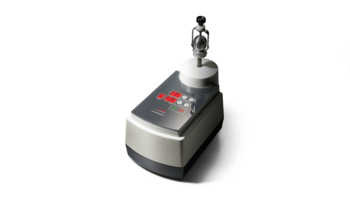

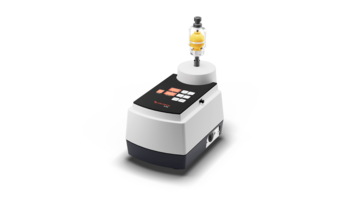

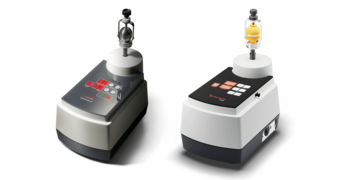

Mini-Mill

PULVERISETTE 23

Nº de pedido
23.1000.00
Accesorios

Please note: For the Mini-Mill you require 1 grinding bowl and the corresponding number of grinding balls. To avoid undesired contamination of the sample through abrasion, we offer a selection of 3 different material types. Normally, grinding bowls and balls of the same material are used. In principle, the grinding bowl material must be harder than the material to be ground.
Grinding bowls and grinding balls made of zirconium oxide for absolute metal-free grinding are also offered. Important: please keep in mind the specified useful capacity as this is not identical to the bowl volume.

GRINDING BOWLS

Ayuda de selección

  • Material data for the grinding bowls/balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Zirconium oxide ZrO2 5.7 very good Fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good hard, brittle samples
    PTFE CxF2x 2.16 sufficient Frozen tissue samples
    Grinding bowl/
    Useful capacity (sample volume)
    15 ml
    0.5 – 5 ml
    10 ml
    0.2 – 1 ml
    5 ml
    0.1 – 1 ml
    Balls diameter
    15 mm 2 1
    10 mm 5 3 1
    5 mm 60 30 20
  • Additional Information

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    Normally, grinding bowls and balls of the same material are used. In principle, the grinding bowl materials must be harder than the material to be ground. Important: Pay attention to the specified useful capacity as this is not identical to the bowl volume!

    It may also be useful to work here with grinding balls ≤ 3 mm diameter. We have not listed these here because we would like to advise you regarding your application. Please contact Mr. Benes our laboratory supervisor.

Please select 1 grinding bowl, which is offered in the sizes 15 ml, 10 ml and 5 ml to perfectly match your sample volume. The useful capacity of the grinding bowls can be found in the selection aid. For the best grinding results all grinding bowls are available in 3 different materials thus directly preventing contamination of the samples as a result of undesired abrasion.

SELECT GRINDING BOWL VOLUME

GRINDING BOWL 15 ML

zirconium oxide - ZrO2
Nº. 23.1427.00
zirconium oxide 15 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 15 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.065 kg

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 23.1409.00
hardened, stainless steel 15 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 15 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.056 kg

General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BOWL 10 ML

zirconium oxide - ZrO2
Nº. 23.1327.00
zirconium oxide 10 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 10 ml
Useful capacity: 0.2 … 1 ml
Weight net: 0.054 kg

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 23.1309.00
hardened stainless steel 10 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 10 ml
Useful capacity: 0.2 … 1 ml
Weight net: 0.045 kg

General material specification:
Material: hardened stainless steel - 1.4125
Abrasion resistance: good
Suitable for: hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BOWL 5 ML

PTFE
Nº. 23.1600.00
Grinding bowl PTFE, 5 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 5 ml
Useful capacity: 0.1 … 1 ml

Weight net: 0.050 kg

This special grinding bowl in combination with a 10 mm steel grinding ball is primarily used to grind biological sample, like for example deep freeze tissue, cells, etc.. The entire bowl can be pre-cooled in liquid nitrogen. Afterwards the sample is subsequently comminuted in sub-zero temperature.


ANÁLISIS ELEMENTAL
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore

GRINDING BALLS

Ayuda de selección

  • Material data for the grinding bowls/balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Zirconium oxide ZrO2 5.7 very good Fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good hard, brittle samples
    PTFE CxF2x 2.16 sufficient Frozen tissue samples
    Grinding bowl/
    Useful capacity (sample volume)
    15 ml
    0.5 – 5 ml
    10 ml
    0.2 – 1 ml
    5 ml
    0.1 – 1 ml
    Balls diameter
    15 mm 2 1
    10 mm 5 3 1
    5 mm 60 30 20
  • Size of the grinding balls

    Type of feed material Ball diameter
    Hard samples with a maximum feed size of 2 - 5 mm 15 mm
    Fine materials 0.5 mm 10 mm or 5 mm
    Homogenisation of dry or liquid samples 10 mm or 5 mm
  • Additional Information

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    Normally, grinding bowls and balls of the same material are used. In principle, the grinding bowl materials must be harder than the material to be ground. Important: Pay attention to the specified useful capacity as this is not identical to the bowl volume!

    It may also be useful to work here with grinding balls ≤ 3 mm diameter. We have not listed these here because we would like to advise you regarding your application. Please contact Mr. Benes our laboratory supervisor.

For achieving best grinding result grinding balls are available in ≤ 3 mm - 15 mm diameters and in 2 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion. The 5 ml PTFE bowl is especially suited for biotechnology applications. The recommended number of balls per grinding bowl can be found in the selection aid.

SELECT GRINDING BALL DIAMETER

GRINDING BALLS 15 MM DIAMETER FOR GRINDING BOWL 15 ML, 10 ML

zirconium oxide - ZrO2
Nº. 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BALLS 10 MM DIAMETER FOR GRINDING BOWL 15 ML, 10 ML, 5 ML

zirconium oxide - ZrO2
Nº. 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BALLS 5 MM DIAMETER FOR GRINDING BOWL 15 ML, 10 ML, 5 ML

zirconium oxide - ZrO2
Nº. 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISIS ELEMENTAL
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
Nº. 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISIS ELEMENTAL
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

Certification

IQ/OQ documentation (questionnaire format - implementation not included)
Nº. 96.0290.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Mini-Mill PULVERISETTE 23.


Certification

IQ/OQ documentation for the independent utilization for the support of instrument qualification in the quality management system for the Mini-Mill PULVERISETTE 23.





Please select certification

certification

IQ/OQ documentation (questionnaire format - implementation not included)
Nº. 96.0290.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Mini-Mill PULVERISETTE 23.
