Fine and powerful comminution of large quantities -
up to 85 litres throughput per hour

Variable rotational speed for optimal adjustment of the cutting speed to your sample material
The NEW Universal Cutting Mills PULVERISETTE 19 large of FRITSCH are ideal for fast fine comminution and powerful, gentle size-reduction of large quantities for a wide range of different materials due to variable adjustment of the rotational speed of the rotor, various knife geometries, replaceable blades, practical sieve cassettes and that with an unmatched ease of cleaning.

Variable 50-700 rpm for powerful comminution
The low-speed Universal Cutting Mill PULVERISETTE 19 large with variable rotational speed adjustment between 50-700 rpm and a torque of up to 67 Nm enables due to the combination of low cutting rate and extreme cutting forces a very powerful comminution of hard, tough-elastic samples and temperature-sensitive sample quantities. Up to 85 litres of sample material with a feed size of up to 120 x 85 mm can be comminuted in an hour. At the same time, it is the ideal solution for all cases where e.g. thermal damage, the loss of highly volatile substances, or an excessively high fine share need to be avoided.
DETAILED INFORMATION oN THE new PULVERISETTE 19 large WITH 50-700 rpm

Variable 300-3000 rpm for fine comminution
With a throughput of up to 85 l/h and a maximum feed size of 120 x 85 mm, the high-speed Universal Cutting Mill PULVERISETTE 19 large comminutes dry soft to medium-hard sample materials, brittle, tough and fibrous materials and plastics at a torque of up to 30 Nm with reliable reproducible results. The great advantage: The variable rotational speed adjustment in increments of hundred between 300 and 3000 rpm enables fine tuning of the comminution process for each sample within a very wide range of applications.
DETAILED INFORMATION oN THE new PULVERISETTE 19 large WITH 300-3000 rpM

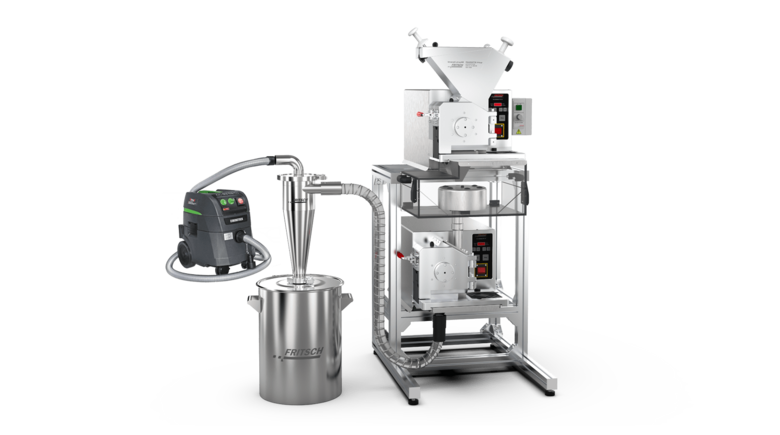

Cutting Mill Combination - our patended power team

Ideal for example to process two litres of sample material with a particle size of 30 mm down to a final fineness < 500 μm quickly in only one step. It doesn't matter how heterogeneous the sample is.

The Cutting Mill Combination PULVERISETTE 19 large/PULVERISETTE 19 consists of:

  • Universal Cutting Mill PULVERISETTE 19 large with variable rotational speed 50 – 700 rpm
  • Universal Cutting Mill PULVERISETTE 19 with variable rotational speed 300 – 3000 rpm
  • hardmetal tungsten carbide cutting tool sets
  • sieve cassettes made of stainless steel
  • interposed sample divider
  • protected funnel with sample pusher
  • underframe
  • sample exhaustion with high-performance Cyclone separator and collecting vessel 60 litres as well as exhaust system

Other configurations and voltages on request! Let us advise you!

DETAILED INFORMATION oN THE new Cutting Mill Combination PULVERISETTE 19 large/PULVERISETTE 19
